Sectional Doors

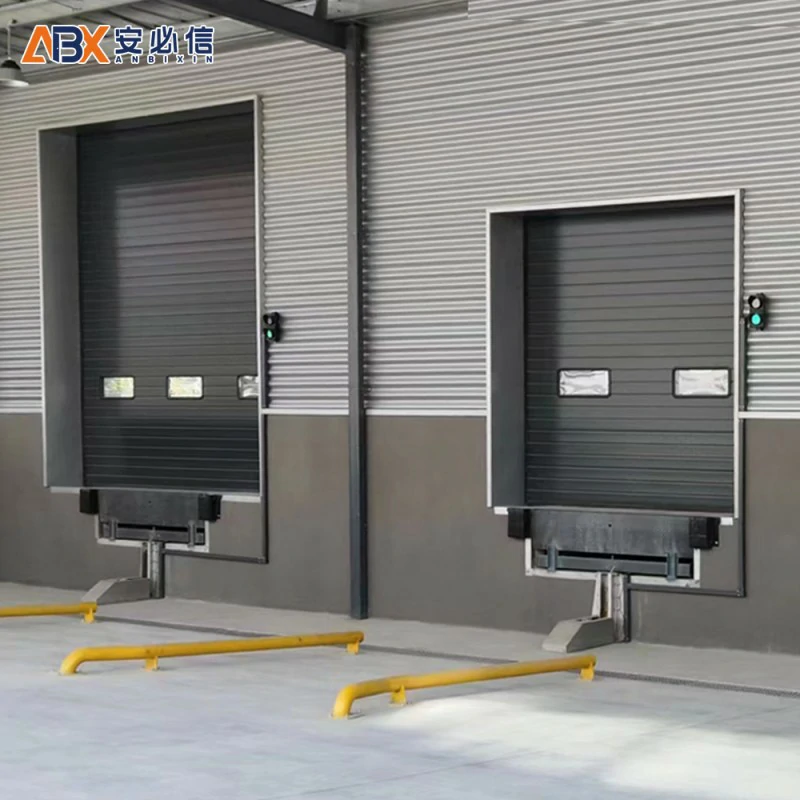

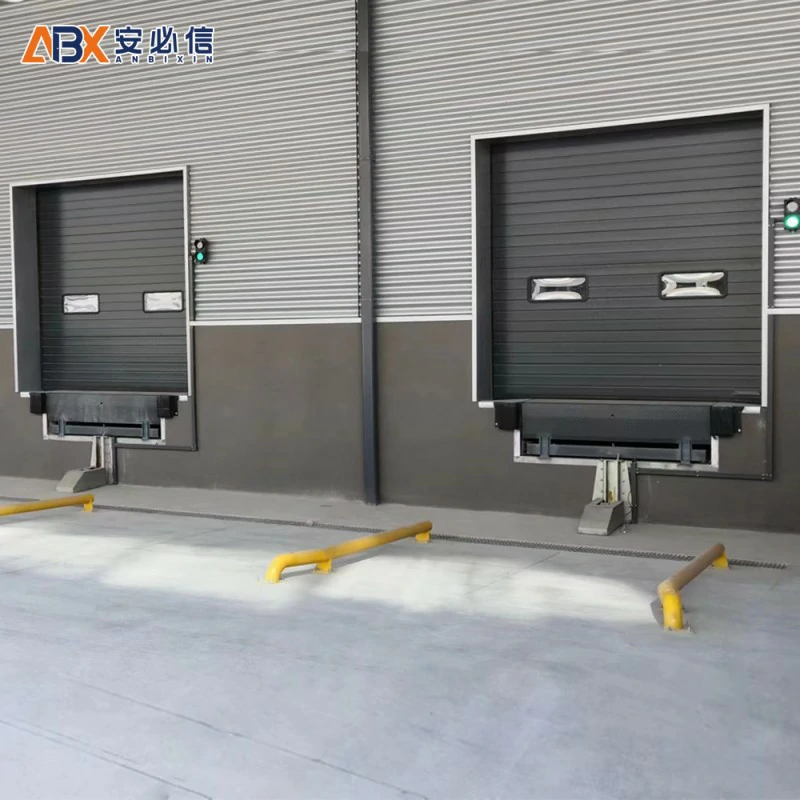

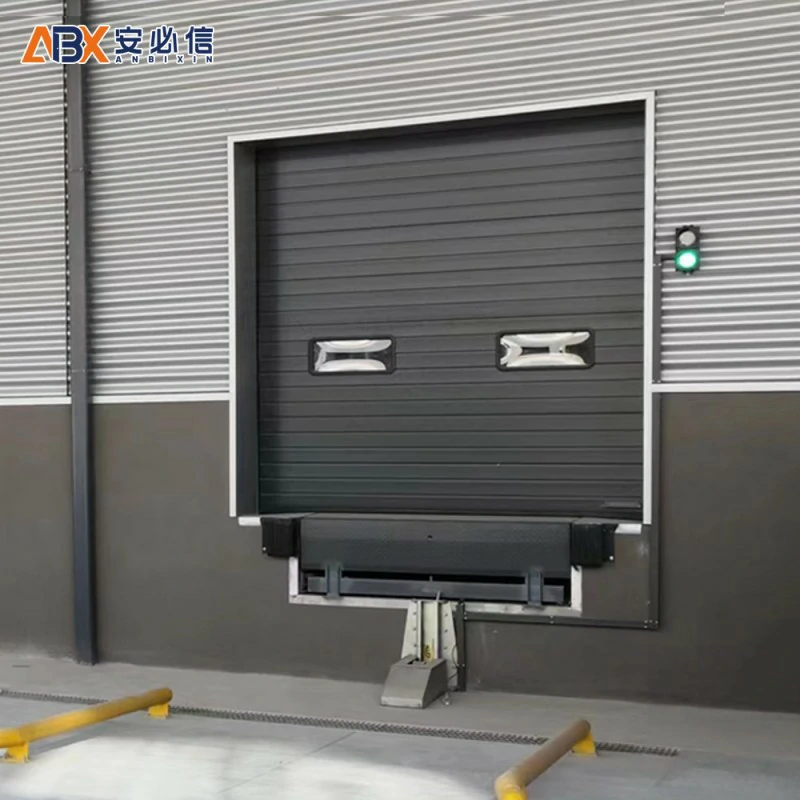

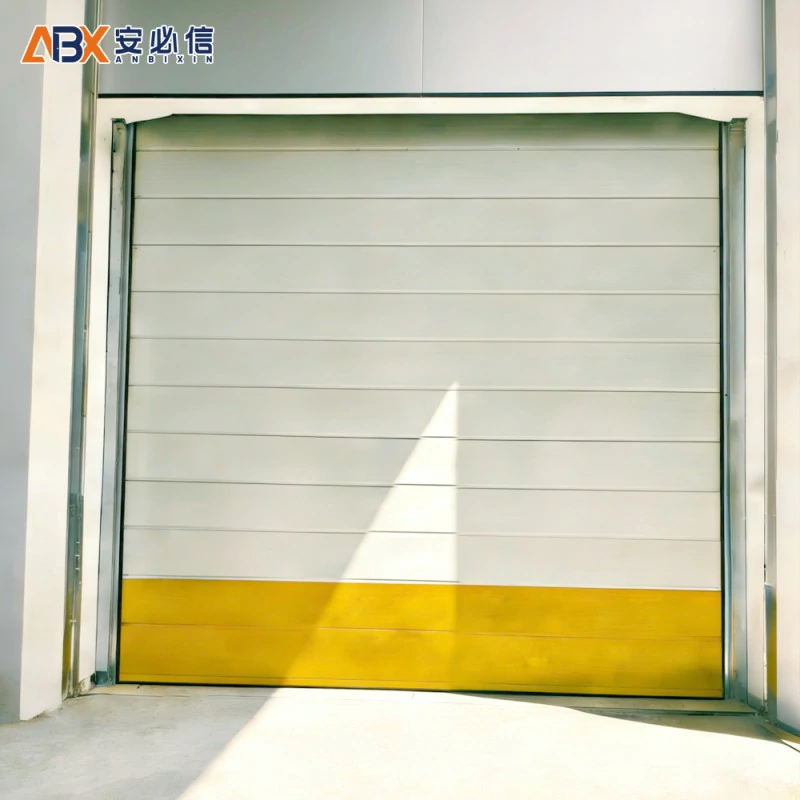

Standard Lift Sectional Door | ABX Sectional Overhead Door
Standard Lift Sectional Door manufactured by ABX Sectional Overhead Door for standard loading docks. OEM branding and container-loaded export delivery available.
Product Overview
The Standard Lift Sectional Door is engineered for standard loading docks that demand reliable daily operation, thermal insulation and a long service life. Every door set leaves our Jiangsu factory pre-assembled and test-run before shipment.
Key Features
- 40-60 mm steel PUF sandwich panels with a thermal transmission of approx. 0.38 W/m2K
- Torsion spring balancing rated for more than 100,000 opening cycles
- Wind reinforcement suitable for 1200 Pa wind load zones
- Safety package as standard: photo eyes, safety edge and anti-fall device
- Optional three-phase motor with manual chain hoist backup
Technical Specifications
| Max Opening Size | W 6000 x H 5000 mm |
|---|---|
| Panel Thickness | 40 / 60 mm |
| Opening Speed | 200-300 mm/s |
| Panel Material | 40-60 mm steel PUF |
| Wind Load | 1200 Pa |
| Surface Finish | White / RAL 7016 |
Applications
Standard docks where lintel height allows a normal horizontal track run.
OEM & Export Support
ABX supports OEM branding, custom RAL colors and container-loaded export delivery worldwide. Send your opening dimensions to hua@abxdoors.com and receive a quotation within 24 hours.
