Turbo Hard Fast Doors
Turbo Hard Fast Industrial Door | ABX Sectional Overhead Door
Turbo Hard Fast Industrial Door manufactured by ABX Sectional Overhead Door for fast cycle plant openings. OEM branding and container-loaded export delivery available.
Product Overview
The Turbo Hard Fast Industrial Door combines rigid aluminum door leaves with a spiral guide track, reaching speeds of up to 2.5 m/s while remaining suitable for fast cycle plant openings.
Key Features
- Rigid 40 mm aluminum slats for a long, quiet service life
- Opening speed up to up to 2.5 m/s with soft start inverter control
- Wind load resistance up to Class 5 (EN 12424)
- Service life beyond 1,500,000 cycles

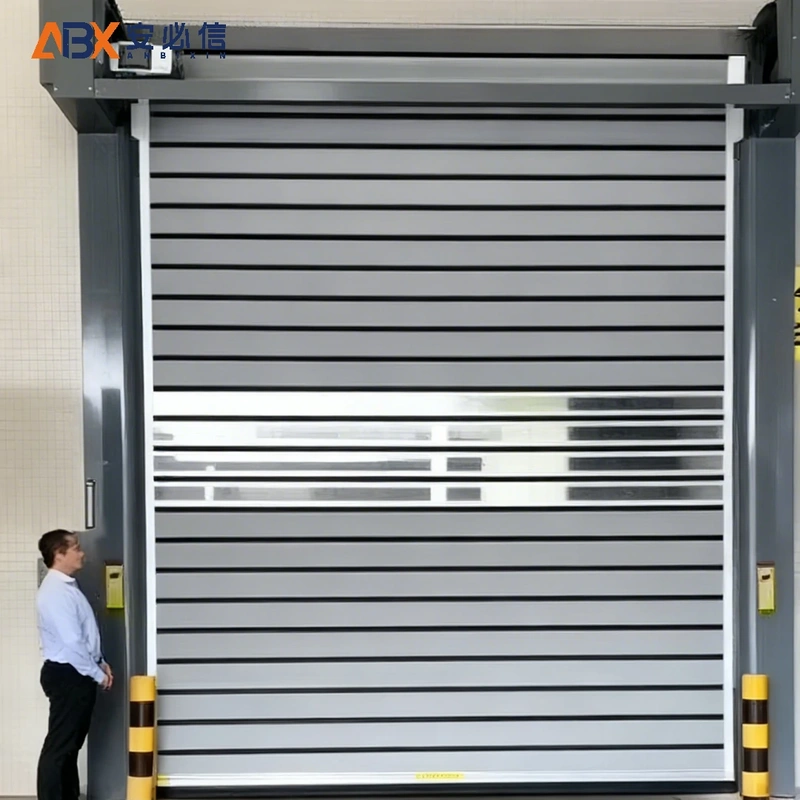

- Full-width vision windows available for traffic safety
Technical Specifications
| Max Opening Size | W 5000 x H 5500 mm |
|---|---|
| Opening Speed | up to 2.5 m/s |
| Door Leaf | 40 mm aluminum slats |
| Wind Load | Class 5 (EN 12424) |
| Cycle Rating | 1,500,000 cycles |
Applications
Openings where speed and rigidity justify the premium system.
Quotation & Support
Send your opening size and cycle estimate to hua@abxdoors.com - our engineers reply within one working day.
